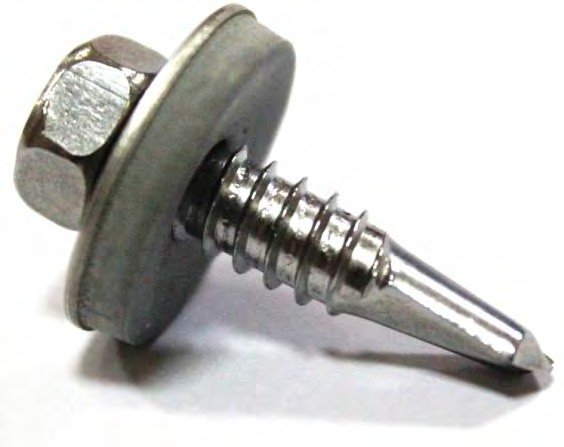

AG HEX HEAD SELF DRILLING SCREW

AG SCREW DNA

• EPDM Bonded Washer: Suitable for exterior environments.
• Unique Point-to-Thread Design: Ensures maximum pull-out strength, prevents strip out.
• Precision Convex Drill Point: Improves drilling performance with less effort.
• Non-Walking Point: Enables fast metal engagement.
• Tough & Weather Resistant: Coating options from basic zinc to 3000 hours SST.

APPLICATION

• Fixes cladding and roofing to hot/cold rolled purlins and rails.
• Fastens liner panels and general components to steel.
• Suitable for steel-to-steel fixing.



POINT SELECTION

AG drill points are well engineered for fast drilling with less effort needed. Select the point size base on your light / medium / heavy duty work.



DRILL POINT#	DRILLING CAPACITY	APPLICATION
REDUCED POINT	2MM (1+1)	Light duty steel to steel
#3	5 MM(2+3)	Medium duty steel to steel
#4	8MM	8 mm steel to steel
#5	12MM	Heavy duty steel to steel
#6	>12MM	Customized for thicker application



SPECIFICATION

• Carbon-Steel (Class-3 / Class-4 Coated)
• Stainless Steel (Grade 410)



SCREW DIA (mm)	LENGTH (mm)	WASHER (mm)	DRILL CAPACITY (mm)
5.50 – 6.30	25 – 200	16 / 19 bounded to EPDM Seal	2.0 – 5.0
			6.0 – 12.50



• Bi-Metal (Corrosion Free) (Class-3 / Class-4 Coated)
• The screw body is made of Stainless Steel Grade 304 and Carbon steel Tip.



SCREW DIA (mm)	LENGTH (mm)	WASHER (mm)	DRILL CAPACITY (mm)
5.50	25 – 200	16 / 19 Stainless Steel bounded to EPDM Seal	2.0 – 5.0
			6.0 – 12.50
